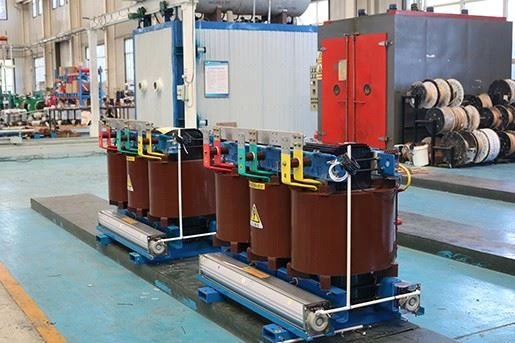

Next-Gen Energy Saving Dry-type Transformer

Compliant with China Class 1 Energy Efficiency Standards. Utilizes amorphous alloy core and high-purity copper foil windings, achieving no-load loss ≤1.2kW and load loss ≤18.5kW, delivering 30%+ energy savings versus conventional models. Annual electricity cost savings exceeding CNY 50,000, ensuring rapid ROI over a 10-year lifespan. Ideal for high-load continuous operation scenarios.

Class H epoxy resin vacuum casting with IP54-rated enclosure, resistant to salt spray, condensation, and extreme temperatures (-40°C to +160°C). Partial discharge <5pC, flame-retardant, pollution-free. CE and CQC certified for stable performance in harsh environments (mines, coastal areas).

Multi-channel 3D cooling design reduces temperature rise to ≤85K (national standard: 100K). Intelligent thermal control adjusts fan speed dynamically, ensuring noise ≤55dB. Equipped with waste heat recovery interfaces for full-load operation in high-temperature conditions.

IP55-rated dustproof/waterproof housing, resistant to high humidity, salt corrosion, and industrial harshness. Withstands 25kA short-circuit currents without damage. Operates reliably across -40°C to +160°C without auxiliary heating/cooling systems.

Class 1 energy efficiency (40% lower no-load loss than national standards), saving CNY 30,000–50,000 annually. Maintenance-free epoxy-sealed structure for 10+ years. Noise <60dB, oil-free, and RoHS environmental certification, suitable for public spaces (malls, schools).
